2.4 Update
In this lab we will update our OpenShift 4 cluster to the latest stable errata release.
Updating an OpenShift 4 cluster is a fully automated process that is managed by several cluster operators. If the cluster has Internet access, updates are provided over-the-air, otherwise you need to synchronize the new images to an internal registry prior to starting the update or use a pull-through registry.
Check “Updating a restricted network cluster” for details on updating a cluster in a disconnected environment.
The update process continuously rolls out new releases of all cluster operators and verifies their readiness before continuing. If a cluster operator is stuck in a non-ready state, the update does not proceed and manual intervention might become necessary.
After all relevant cluster operators are updated successfully, the machine config operator updates the configuration of the master and worker nodes and - if a newer version is available - replaces the nodes’ operating system image (Red Hat Enterprise Linux CoreOS).
Task 2.4.1: Updating the cluster
The cluster update can be performed from the web console or the CLI. Choose the one you prefer to do or will most likely perform in the future.
Updating from the web console
Navigate to Administration, then Cluster Settings to get started. You will see the available update paths in the graph:

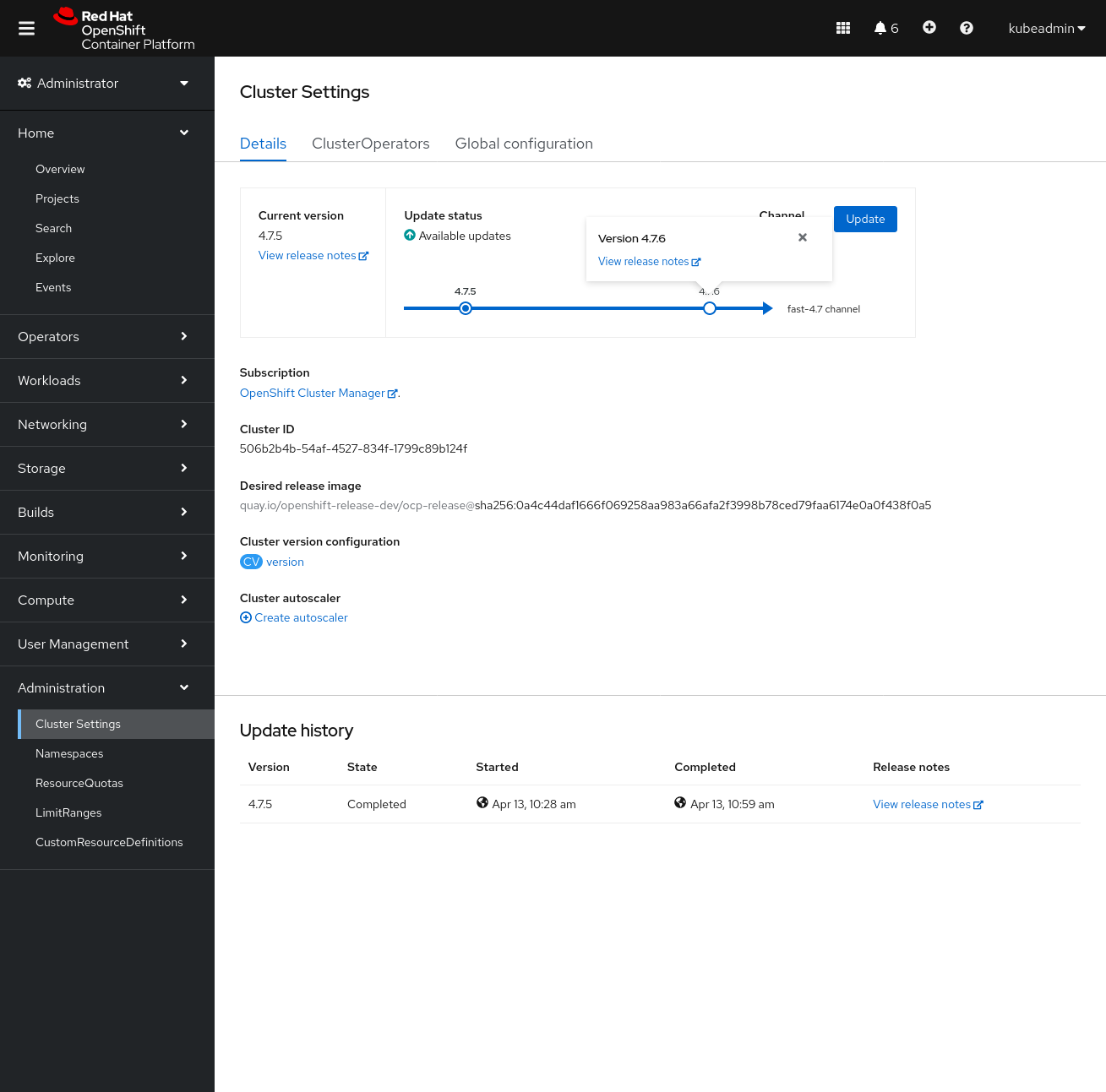

To read the release notes of the new version, click on the target version and follow the link:
The update process from the web console is pretty straightforward. To start the update, all you have to do is press two buttons.

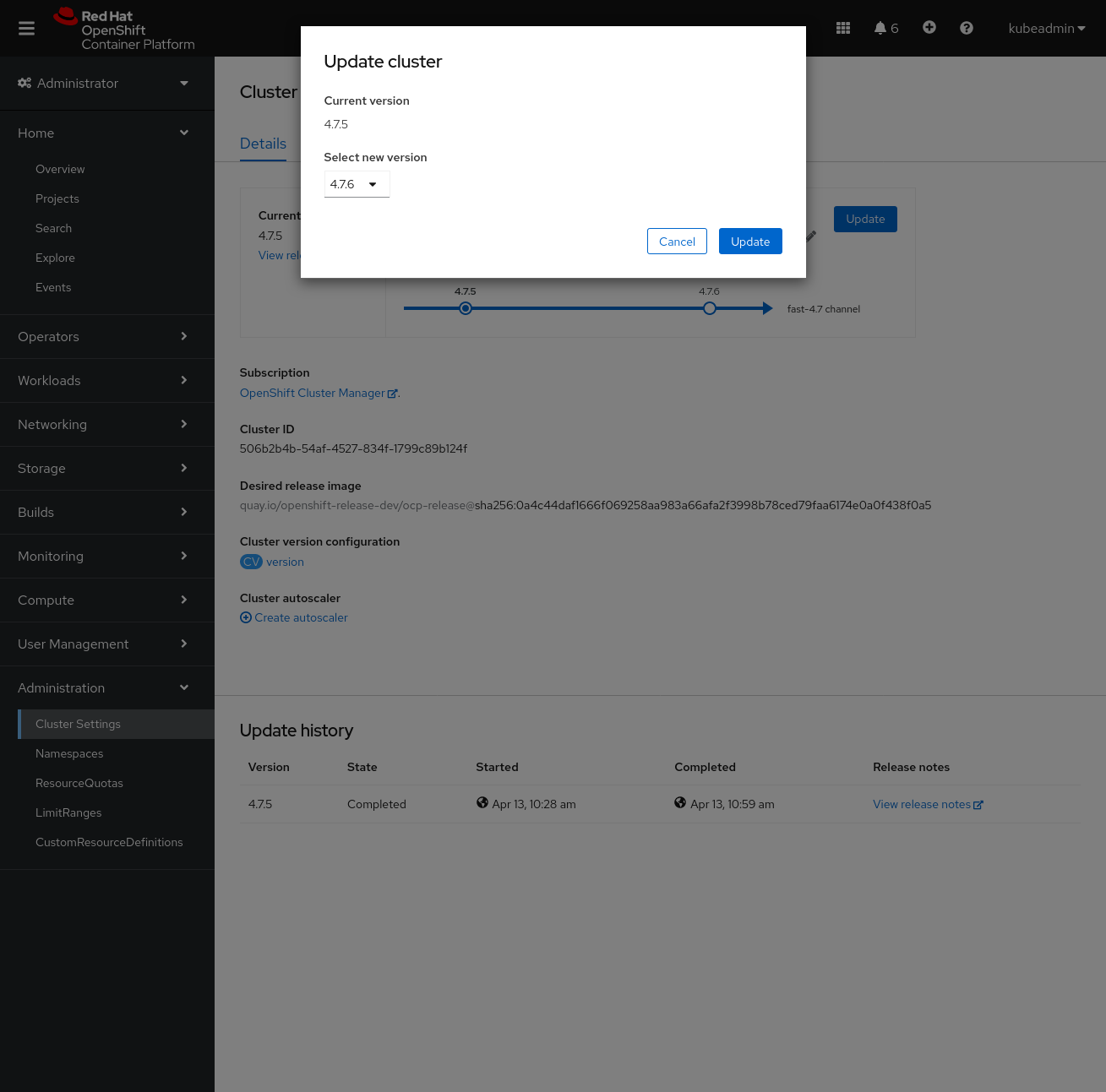

Click the update button and confirm the update to the target version by again clicking on the update button:

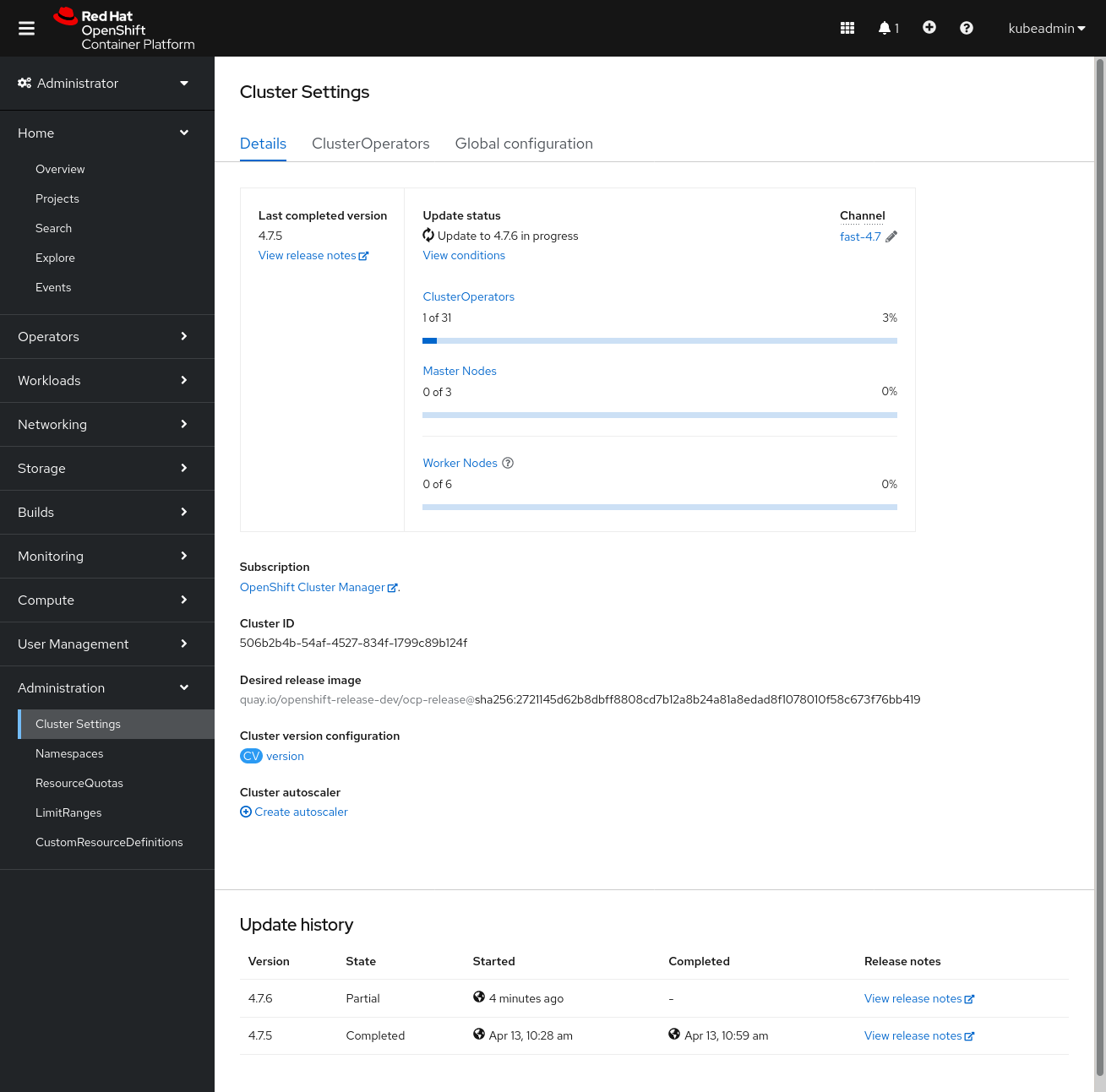

The update process will start updating the cluster operators:

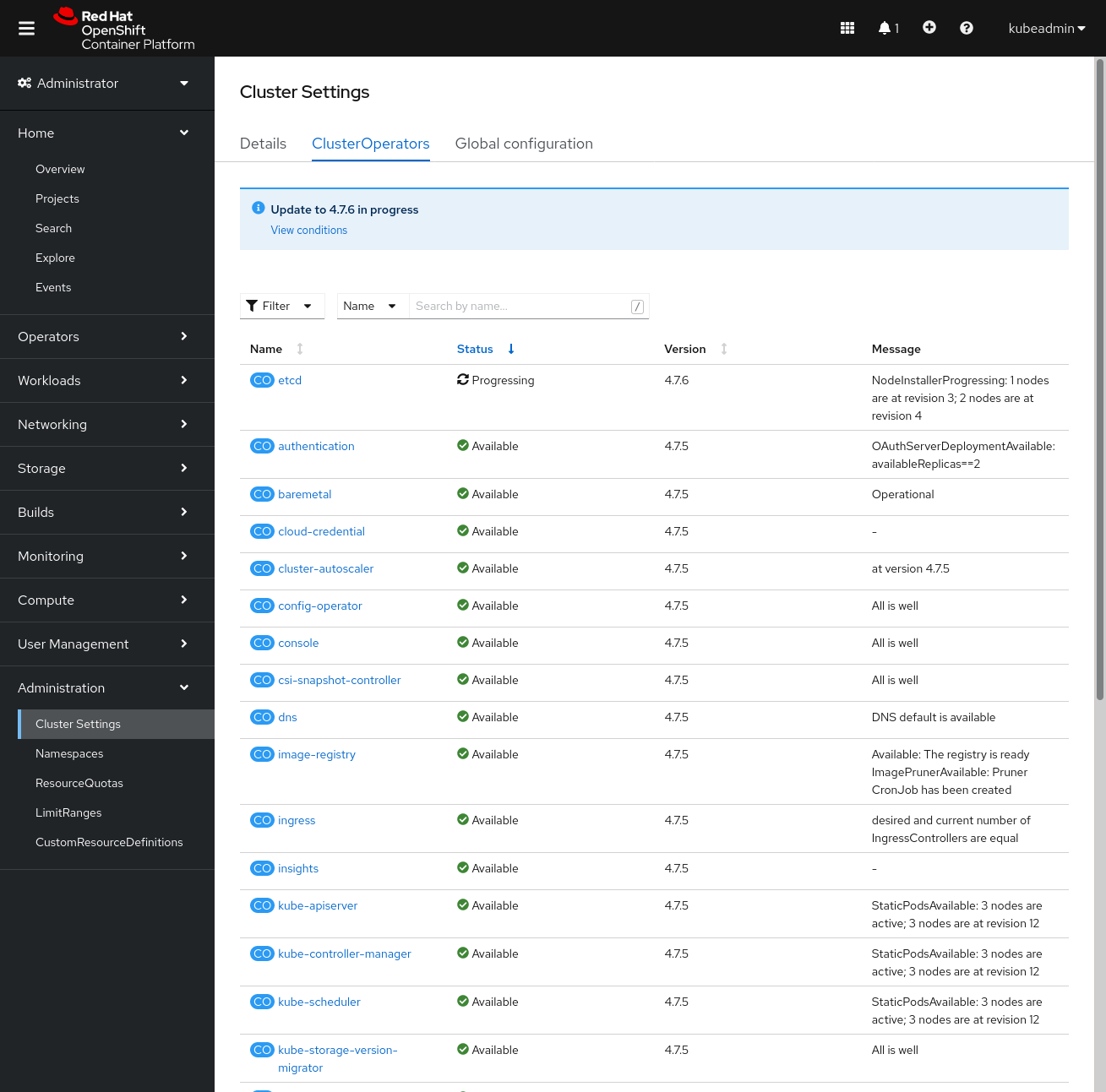

You can see more details in the second tab:

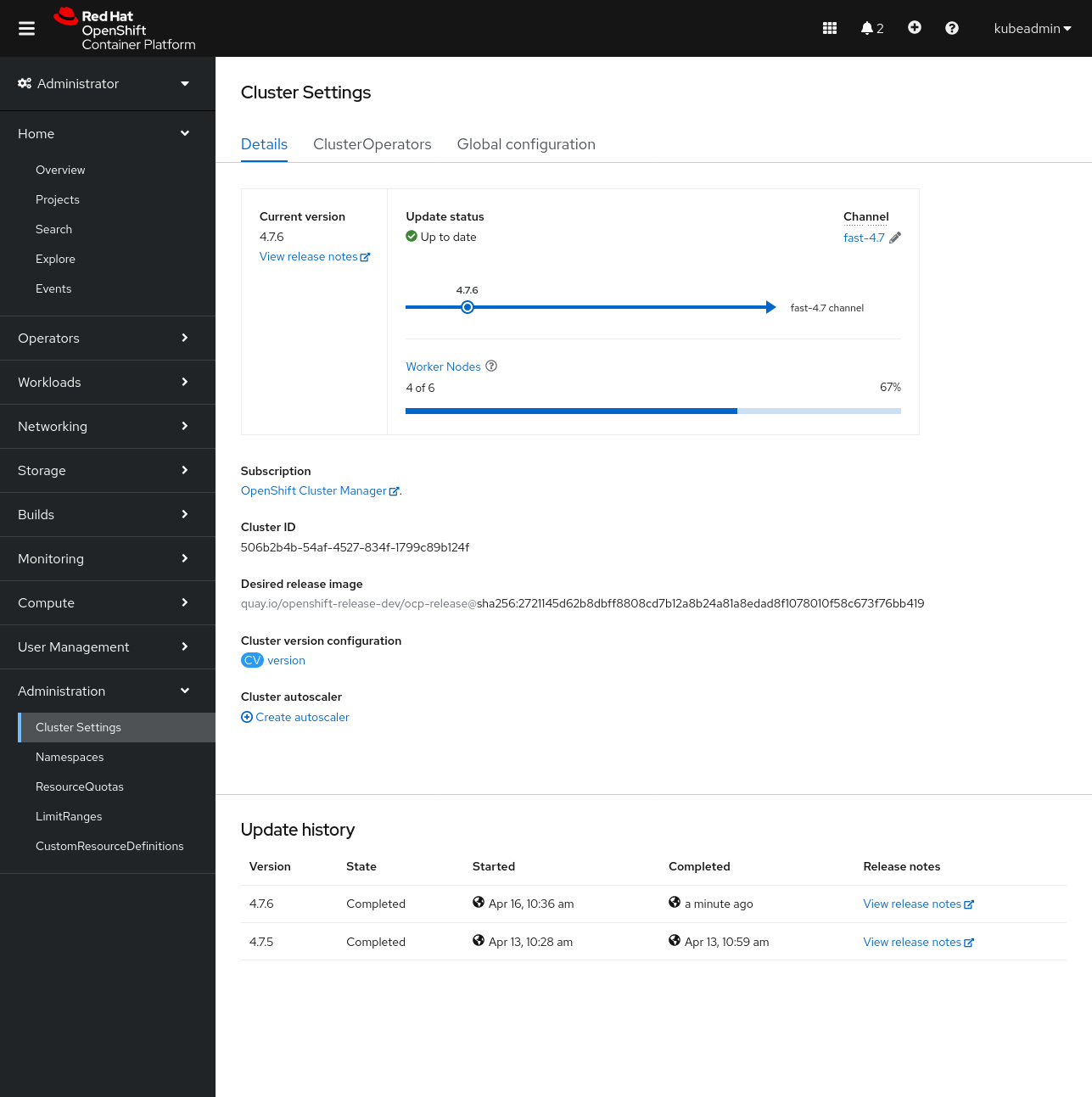

Worker nodes may continue to update after the update of the masters and cluster operators is complete:

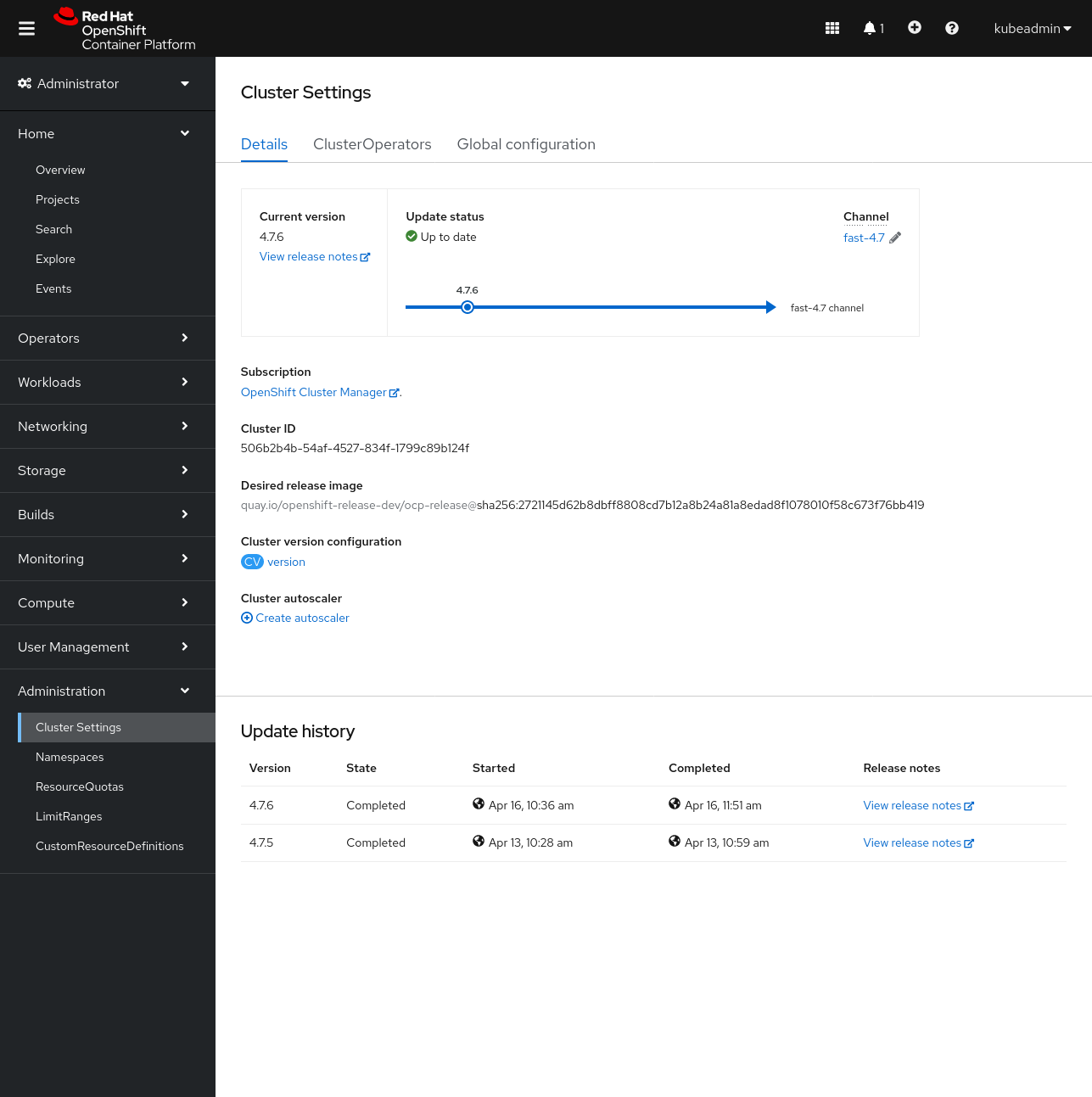

Finally, the update is completed:
Updating the cluster from the CLI
Before starting the update, ensure that your cluster is available by looking at the clusterversion resource.
Hints
oc get clusterversion
Example output:
NAME VERSION AVAILABLE PROGRESSING SINCE STATUS
version 4.7.5 True False 2d23h Cluster version is 4.7.5
You can check the available updates by running the oc adm upgrade command without any parameters:
oc adm upgrade
Example output:
Cluster version is 4.7.5
Updates:
VERSION IMAGE
4.7.6 quay.io/openshift-release-dev/ocp-release@sha256:2721145d62b8dbff8808cd7b12a8b24a81a8edad8f1078010f58c673f76bb419
Warning
You can only update to one of the available target versions. Do not force the update to an unsupported version, since it could render your cluster useless.Starting the update process depends on what we want to do. We have two options:
- To update to the latest version:
oc adm upgrade --to-latest=true
- To update to a specific version:
oc adm upgrade --to=<version>
You can track the progress of the update by checking the history of the output of the clusterversion:
oc get clusterversion -o json|jq ".items[0].status.history"
Example output:
[
{
"completionTime": null,
"image": "quay.io/openshift-release-dev/ocp-release@sha256:2721145d62b8dbff8808cd7b12a8b24a81a8edad8f1078010f58c673f76bb419",
"startedTime": "2021-04-16T08:36:21Z",
"state": "Partial",
"verified": false,
"version": "4.7.6"
},
{
"completionTime": "2021-04-13T08:59:49Z",
"image": "quay.io/openshift-release-dev/ocp-release@sha256:0a4c44daf1666f069258aa983a66afa2f3998b78ced79faa6174e0a0f438f0a5",
"startedTime": "2021-04-13T08:28:43Z",
"state": "Completed",
"verified": false,
"version": "4.7.5"
}
]
You can also check the progress of the update by tracking the status of the ClusterOperators.
Hints
oc get clusteroperators
Example output:
NAME VERSION AVAILABLE PROGRESSING DEGRADED SINCE
authentication 4.7.5 True False False 148m
baremetal 4.7.5 True False False 3d
cloud-credential 4.7.5 True False False 3d
cluster-autoscaler 4.7.5 True False False 3d
config-operator 4.7.6 True False False 3d
console 4.7.5 True False False 2d21h
csi-snapshot-controller 4.7.5 True False False 3d
dns 4.7.5 True False False 3d
etcd 4.7.6 True False False 3d
image-registry 4.7.5 True False False 3d
ingress 4.7.5 True False False 3d
insights 4.7.5 True False False 3d
kube-apiserver 4.7.6 True False False 3d
kube-controller-manager 4.7.6 True False False 3d
kube-scheduler 4.7.6 True False False 3d
kube-storage-version-migrator 4.7.5 True False False 3d
machine-api 4.7.6 True False False 3d
machine-approver 4.7.5 True False False 3d
machine-config 4.7.5 True False False 3d
marketplace 4.7.5 True False False 3d
monitoring 4.7.5 True False False 74m
network 4.7.5 True False False 3d
node-tuning 4.7.5 True False False 3d
openshift-apiserver 4.7.6 True False True 3d
openshift-controller-manager 4.7.5 True False False 3d
openshift-samples 4.7.5 True False False 3d
operator-lifecycle-manager 4.7.5 True False False 3d
operator-lifecycle-manager-catalog 4.7.5 True False False 3d
operator-lifecycle-manager-packageserver 4.7.5 True False False 3d
service-ca 4.7.5 True False False 3d
storage 4.7.5 True False False 3d
Note
In the example output above you can see that the openshift-apiserver ClusterOperator is already reporting the new version, but is currently in a degraded state. This is expected behaviour during the update process, so no need to worry.
After all cluster operators are rolled out, the master and worker nodes are updated. The machine config operator sequentially cordons the nodes, applies the new configuration and restarts the Kubelet service.
Check the status of the nodes to see the process.
Hints
oc get nodes
Example output:
NAME STATUS ROLES AGE VERSION
ip-10-0-130-69.eu-north-1.compute.internal Ready,SchedulingDisabled infra,worker 43h v1.20.0+bafe72f
ip-10-0-139-81.eu-north-1.compute.internal Ready worker 3d v1.20.0+bafe72f
ip-10-0-154-185.eu-north-1.compute.internal Ready infra,worker 43h v1.20.0+bafe72f
ip-10-0-154-3.eu-north-1.compute.internal Ready infra,worker 43h v1.20.0+bafe72f
ip-10-0-155-28.eu-north-1.compute.internal Ready,SchedulingDisabled master 3d1h v1.20.0+bafe72f
ip-10-0-173-170.eu-north-1.compute.internal Ready worker 3d v1.20.0+bafe72f
ip-10-0-184-171.eu-north-1.compute.internal Ready master 3d1h v1.20.0+bafe72f
ip-10-0-195-93.eu-north-1.compute.internal Ready worker 3d v1.20.0+bafe72f
ip-10-0-212-27.eu-north-1.compute.internal Ready master 3d1h v1.20.0+bafe72f
Note
By default, only one machine per pool is allowed to be unavailable during the update process. For a larger cluster, this can take a long time for the configuration change to be reflected. We can alter this behaviour by changing themaxUnavailable value in the respective nodes’ MachineConfigPool.
